Exercises

Electron Correlation

Multireference Methods

Exercise 1.1

Electron correlation is very important in dissociation processes to get qualitatively and quantitatively correct results. Calculate the potential energy curves for the dissociation of HF with the single-reference methods RHF, UHF, MP2, CCSD(T) and CASSCF, which is a multi-reference method. Compare the results.

Approach

1. In order to easily calculate potential energy curves, we use ORCA. Create the following inputs for the given methods and save them in different directories. (e.g. rhf.inp, uhf.inp, etc.).

   Input for RHF:

   ! RHF def2-TZVP TightSCF

   %paras R= 4.0,0.5,35 end

   * xyz 0 1
   H 0 0 0
   F 0 0 {R}
   *


   Modifications for

   UHF:

   ! UHF def2-TZVP TightSCF

   %scf BrokenSym 1,1 end


   MP2:

   ! RHF MP2 def2-TZVP TightSCF


   CCSD(T):

   ! RHF CCSD(T) def2-TZVP TightSCF


   CASSCF (2 active electrons in 2 orbitals):

   ! RHF def2-TZVP TightSCF Conv

   %casscf
     nel 2
     norb 2
     switchstep nr
   end


   Calculate the potential energy curve by a CASSCF calculation with 6 electrons (nel) in 6 active orbitals (norb) as well.

2. Call ORCA with the command

   orca <file>.inp > <file>.out


3. Plot the resulting potential energy curves e.g. using gnuplot (see section Plotting). To do so, delete the first line in the files <filename>.trj*.dat to read them (find out which file is the right one yourself).

4. Calculate the energies for hydrogen and fluorine atoms for all given methods. Which methods will yield the identical energies for the hydrogen atom?

5. Plot the curves relative to the energies of the individual atoms and discuss your results (particularly the energies at large distances).

Hint

Have a closer look at the UHF dissociation curve. Does it look as you would expect it? Try to explain the “strange” behavior in terms of symmetry breaking.

Hint

If you encounter convergence problems in the CAS(6,6) calculations, try increasing the maximum number of macro-iterations for CASSCF by adding the following keyword in the %casscf block:

  maxiter 1000

Carbenes

All following calculations will be done with TURBOMOLE if not stated otherwise. Also, if not specified otherwise we will use the RI approximation and C₁ symmetry throughout.

Exercise 1.2

Calculate the singlet-triplet splitting of methylene and p-benzyne with HF, MP2, DFT and CCSD(T).

Approach

1. Create the file coord with starting geometries for Methylene and p-Benzyne.

   The syntax is:

   $coord
   x y z atom1
   x y z atom2
   ...
   ...
   $end


   You can either create the files by hand or use the program Avogadro for this purpose (see section Software for Visualization of Molecules). Avogadro uses Å as unit, but the unit for the coord file has to be bohr (atomic units). To convert a *.xyz file into a coord file you can use the command

   x2t *.xyz > coord


   This also works the other way round:

   t2x coord > *.xyz




2. Methylene: Optimize the geometries of the singlet and the triplet state with the given methods (HF, TPSS, B3LYP, PW6B95, MP2) and the basis set def2-TZVP. The following input is an example of a control file with the correct options for a B3LYP/def2-TZVP calculation of the triplet (= 2 unpaired electrons) state.

   $coord file=coord
   $eht charge=0 unpaired=2
   $symmetry c1
   $atoms
     basis=def2-TZVP
   $dft
     functional b3-lyp
   $rij
   $energy file=energy
   $grad file=gradient
   $end


   To generate the input for the other calculations, please look at the table provided in section Keywords in control. For the MP2 calculations, exchange the $dft with the proper $ricc2 block and don’t forget to specify $denconv small enough.

   Geometry optimizations (DFT, HF) are done with the program jobex:

   jobex -ri > jobex.out


   Note that for MP2 geometry optimizations, you have to add the -level cc2 option. Energies after geometry optimizations can be found in the file job.last. HF and DFT energies for each SCF-cycle are additionally written in the file energy. In the case of CCSD(T) (also defined via the $ricc2 block), do not perform a geometry optimization, but do a single-point calculation on the MP2 optimized geometries. Before performing the actual CCSD(T) calculation, you have do run a HF-SCF:

   ridft > ridft.out
   ccsdf12 > ccsdf12.out


   The energies can then be found in ccsdf12.out.

3. In order to measure the angles of the optimized structures, you can use Avogadro or a small TURBOMOLE script called bend:

   bend i j k


   with atom numbers i, j, k.

   Note down the HCH-angle and total energies for each method, as well as the singlet-triplet splitting (\(\Delta E_\text{S-T} = E_\text{singlet} - E_\text{triplet}\)). The experimental value for the splitting is 9.0 kcal⋅mol^-1. The experimentally found angles are 102.4° for the singlet and 135.5° for the triplet.

4. p-Benzyne: Repeat the same calculations for p-benzyne. The experimental value for the splitting is -4.2 kcal⋅mol^-1.

5. Discuss your findings and compare them to the experiment.

Hint

A HF calculation can be performed by simply omitting the $dft block in the above input file. For post HF calculations, add the $ricc2 block:

$ricc2
  mp2                # or ccsd(t)
  geoopt model=mp2   # only for MP2 geometry optimizations

Hint

If you encounter convergence problems in the MP2 or CCSD(T) calculations, try to increase the maximum number of SCF cycles (e.g. 100) by adding the following keyword:

  $scfiterlimit <limit>

Basis Set Convergence

Formic Acid Dimer

Exercise 2.1

Investigate the basis set convergence behavior of different methods for the formic acid dimer.

Approach

1. Create separate directories for the formic acid dimer and monomer and set up geometry optimizations on the TPSS-D3/def2-TZVP level of theory. To do so, create structures using e.g. Avogadro and convert them to coord files. Prepare the calculations in the same way as in exercise 1.2. You can use a similar control file and add the $disp3 -bj keyword for the D3 dispersion correction. DFT geometry optimizations are performed via:

   jobex -ri > jobex.out


2. Using the optimized geometries, calculate the dimerization energy (energy difference of one dimer and two monomers) with HF, TPSS-D3 and MP2 employing the cc-pVXZ (X = D, T, Q) basis sets and their augmented counterparts (aug-cc-pVXZ). Refer to the table of input options given in section Keywords in control.

3. Tabulate your results and plot the total energies versus the cardinal number of the basis set for each method (e.g. with gnuplot).

4. Discuss your findings with respect to the basis set superposition error (BSSE) and the basis set incompleteness (BSIE). Which methods can be considered as converged towards the basis set limit when used with a quadruple-ζ basis?

Hint

• The calculations with quadruple-ζ basis can be quite time consuming. Exploiting the symmetry by choosing the correct point group in the $symmetry block might accelerate the calculations.

• Remember that you have to perform a HF single-point calculation (using ridft) before you can start the MP2 calculation with ricc2 in the same directory.

Thermochemistry

Reaction Enthalpies of Gas-Phase Reactions

Exercise 3.1

For small molecules, highly accurate thermochemical results are reachable in quantum chemistry. This means chemical accuracy with an error of less than 1 kcal/mol. Calculate the reaction enthalpies at 298 K for the following, industrially important reactions:

CH₄ + H₂O ⇌ CO + 3 H₂ (steam reforming of methane)

N₂ + 3 H₂ ⇌ 2 NH₃ (Haber-Bosch process)

The experimental data are:

Reaction	\(\Delta H_{r}(298\,\text{K})\) / kcal⋅mol-1
Steam reforming	+49.3
Haber-Bosch	-22.5

Approach

1. Optimize the reactants and products using TPSS-D3/def2-TZVP (see earlier exercises and section Keywords in control, keep in mind the $disp3 -bj keyword).

2. In order to get the thermal corrections from energy to enthalpy at 298 K, do a frequency calculation first. Use the program aoforce to calculate the vibrational frequencies in TURBOMOLE:

   aoforce > aoforce.out


3. Then, calculate the thermal enthalpy corrections \(\Delta H_{298}\) with the program thermo. It needs a .thermorc input file from your home directory. Create this file by typing:

   echo "0.0  298.15  1.0" > ~/.thermorc


   The first number is an internal threshold, the second the temperature in Kelvin and the third the scaling factor for the vibrational frequencies (1.0 for TPSS). Pipe the output into a separate file, e.g.:

   thermo > thermo.out


4. Repeat the optimization for the molecules involved in the Haber-Bosch process with MP2/def2-TZVP. Calculate the deviation of these differently optimized structures by computing the root mean square deviation of the coordinates:

   rmsd <tpss-geometry> <mp2-geometry>


5. Calculate single-point energies with the hybrid functional B3LYP-D3/def2-TZVP and with MP2/def2-TZVP. Use the TPSS-D3 geometries and thermal corrections to calculate the reaction enthalpies.

6. Calculate single-point energies with the double hybrid B2PLYP-D3/def2-QZVP and with CCSD(T)/def2-QZVP. Use the TPSS-D3 geometries and thermal corrections to calculate the reaction enthalpies. Keep in mind that you have to run an SCF first with ridft. Afterwards, use ricc2 for the double-hybrid and ccsdf12 for the coupled cluster calculation. The energies can be found in the respective output.

7. Tabulate your results and compare to the experimental values. Which method would you expect to show the smallest deviation to the experiment? Do your findings match your expectation? Disscuss your outcome.

Heat of Formation of C₆₀ (optional)

Exercise 3.2

Calculate the heat of formation \(\Delta H_f^0\) of the C₆₀ molecule by using different methods.

Approach

1. Optimize the geometry of C₆₀ on the TPSS-D3/def2-SVP level in I_h symmetry. In order to do so you can build a coord file on your own or search for a proper input on the internet. The symmetry can be defined with the $symmetry ih keyword in control.

2. Calculate the energy of C₆₀ on TPSS/def2-SVP level without D3 corrections, use the TPSS-D3/def2-SVP optimized geometry.

3. Calculate the frequencies of C₆₀ and the thermal corrections the same way as in exercise 3.1.

4. Now, calculate the energy of a single carbon atom on the TPSS/def2-SVP level of theory and the thermal corrections to \(\Delta H_{298.15}\) (use C₁ symmetry).

5. Calculate \(\Delta H_f^0\) of C₆₀ and compare to experimental results (599 / 635 kcal/mol). You will need the experimental \(\Delta H_f^0\) of a carbon atom: 170.89 kcal/mol.

6. Calculate single-point energies (without dispersion correction) for carbon and C₆₀ with TPSS and HF employing the def2-TZVP and the def2-QZVP basis sets. Use the results to calculate the heat of formation. (Use the TPSS-D3/def2-SVP geometries and corrections to \(\Delta H_{298.15}\) for this purpose.)

7. Calculate the D3 dispersion correction to the TPSS/def2-QZVP energy and calculate \(\Delta H_f^0\) again. Use the standalone program dftd3:

   dftd3 coord -func tpss -bj


8. Discuss your results.

Kinetics

Kinetic Isotope Effect

Exercise 4.1

Calculate the kinetic isotope effect for the reaction CH₄ + HO⋅ → ⋅CH₃ + H₂O. From transition state theory, it is known that

\[\frac{k_\text{H}}{k_\text{D}} = e^{-\frac{\Delta H^{\neq}_\text{H}-\Delta H^{\neq}_\text{D}}{RT}}.\]

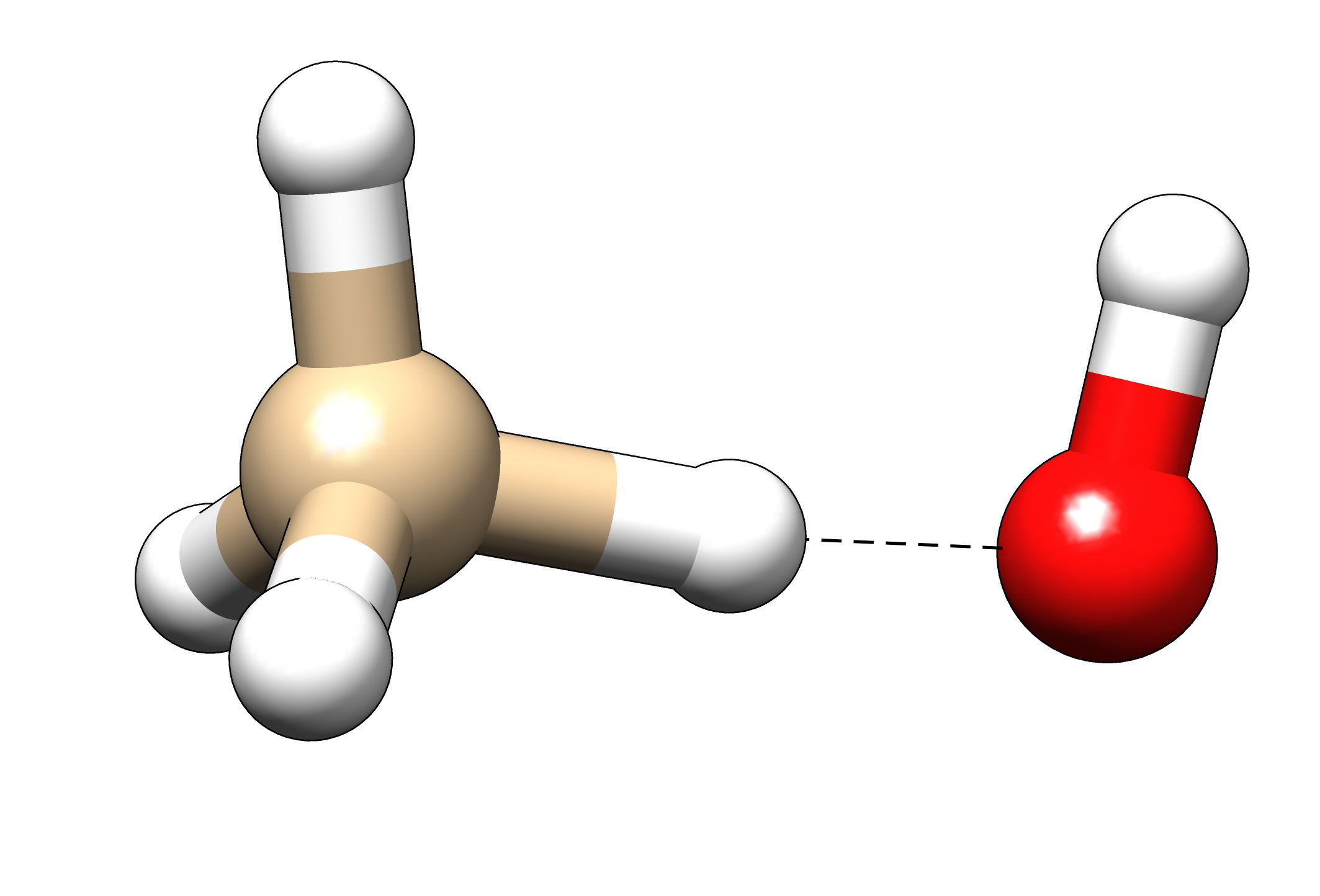

Geometry of the transition state.

Approach

1. Calculate the geometry of the transition state for the hydrogen transfer. In order to do this, create a coord file with a starting geometry that is similar to the one in the picture, with \(R_{C-H} \approx\) 1.2 Å and \(R_{O-H} \approx\) 1.3 Å.

   In order to find the transition state, use the following steps:

   1. Prepare a control file. Use the B3LYP-D3/def2-TZVP level of theory. Look at section Keywords in control if you are unsure. You might need to increase the $scfiterlimit in this exercise.

   2. Consecutively, calculate energy, gradient and hessian:

      ridft > ridft.out
      rdgrad > rdgrad.out
      aoforce > aoforce.out


   3. Verify that there is at least one, relatively large imaginary frequency in the output of aoforce (it also appears in the vibspectrum file). Then, add the following block to the control file.

      $statpt
        itrvec 1


      (in general the frequency mode describing the motion of the reaction)

   4. Start the transition state search:

      jobex -ri -trans > jobex.out


2. When the search is successful (a GEO_OPT_CONVERGED file has been created in the directory), calculate the vibrational frequencies of the transition state (aoforce) and verify that there is only one imaginary frequency. You can have a look at that corresponding normal mode by calling:

   tm2molden


   Choose your desired options in the short interactive experience. You do not need to pick a name for the input file or to save the MO data, the latter will make the file rather large (but obviously save the frequency data). You can open the resulting file (default: molden.input) with gmolden. The normal modes can be visualized by clicking on “Norm. Mode” on the right side of the menu.

3. Call the program thermo and note down the thermal corrections to the enthalpy.

4. Repeat the transition state search with CD₄ and OH. Therefore, take the initial control file and add an additional non-default atom weight definition to the 4 affected hydrogen atoms in the $atoms block. You need to look in the coord file and identify the indices of the h atoms you want to change to deuterium. Say these hydrogen atoms are atoms 2, 3, 4 and 5, then change the $atoms block to:

   $atoms
     basis=def2-TZVP
   h 2,3,4,5
     mass=2.014


5. With this input, repeat all aforementioned steps.

6. Calculate the energies and thermal corrections for CH₄, CD₄ and OH.

7. Finally, calculate \(k_\text{H}/k_\text{D}\).

Solvation

S_N2-Reaction

Exercise 5.1

Calculate the potential energy curve for the S_N2-reaction of chloromethane with a flouride anion in the gas-phase and in methanol (ε = 32) between \(r(\text{C}-\text{F})\) = 2.25 and 8.00 bohr with ε being the dielectric constant of the solvent.

Approach

1. Create structures and calculate the energies of the reactants (one calculation for each reactant) in the gas-phase and at ε = 32 (methanol). Use the hybrid functional PW6B95 with a def2-TZVP basis and D3 dispersion correction. Keep in mind that you also have to specify the charge and the solvent model in the control file, e.g.:

   $eht charge=-1 unpaired=0
   $cosmo
     epsilon=32.0


2. To create the potential energy curves, use the shell script below. The script loops over all distances. For each distance it creates a new directory, performs the constrained geometry optimization and writes the electronic energy (not necessarily your final reaction energy) into a file called results.dat. Create a new directory and copy and paste the script to a file named run-scan.sh.

   #!/usr/bin/env bash

   # Choose directory here
   calc_dir=scan_vac

   cd $calc_dir
   if [ -f ./results.dat ]
   then
     rm results.dat
   fi

   read -r -d 'END' template <<-EOF
   \$coord
      0.00000000      0.00000000      0.00000000  c f
      0.00000000      0.00000000     -3.36989165  cl
      0.00000000      0.00000000      DIST        f f
     -1.00404366      1.73905464     -0.62462166  h
     -1.00404366     -1.73905464     -0.62462166  h
      2.00808733      0.00000000     -0.62462166  h
   \$end
   END
   EOF

   for dist in $(seq 2.25 0.25 8.00 | sed s/,/./)
   do

     # Check for existence of folder
     if [ -d $dist ]
     then
       rm -r $dist
     fi
     mkdir $dist
     cp control $dist
     pushd $dist
     echo "$template" | sed "s/DIST/$dist/" > coord

     jobex -ri -c 50

     # Get final energy
     e=$(sdg energy | tail -1 | gawk '{printf $2}')

     # Write energy to a file
     echo $dist $e >> ../results.dat
     popd

   done


   A template for the coord file is given directly inline in the script, we will repeat it here to explain a few details. The f after the atom specification tells TURBOMOLE to keep the coordinates fixed for that atom. DIST ist a placeholder which will be substituted by the C–F distance.

   $coord
      0.00000000      0.00000000      0.00000000  c f
      0.00000000      0.00000000     -3.36989165  cl
      0.00000000      0.00000000      DIST        f f
     -1.00404366      1.73905464     -0.62462166  h
     -1.00404366     -1.73905464     -0.62462166  h
      2.00808733      0.00000000     -0.62462166  h
   $end


   In order to use the script, you have to make it executable by typing:

   chmod +x run-scan.sh


   Create subdirectories (e.g. scan_vac and scan_cosmo) for each potential energy curve and place a proper control file in each of these subdirectories. You will have to adapt the script to your directory names (name in line 4). The results.dat file will be written to the respective subdirectory. Execute the script by typing:

   ./run-scan.sh


3. Plot the two curves together (normalize the curves reasonably) and discuss the results. Estimate the activation barrier for both cases.

Hint

If the execution of such a script takes some longer time, consider calling it with:

nohup ./run-scan.sh &

Then, you can log out of your shell without killing the calculation.

Activation Energies

Rearrangement and Dimerization Reactions

Exercise 6.1

Estimate the activation energy for the Claisen rearrangement of allyl-vinyl ether and the dimerization of cyclopentadiene to endo-dicyclopentadiene (Diels-Alder).

Approach

1. Construct the geometry of reactant(s) and product for each reaction (e.g. using Avogadro). Ensure that the sequence of atoms is the same in every pair of reactant and product structure.

   Hint

   Preparing good input structures for transition state searches is absolutely essential, often you can easily create a product structure from your reactant. Furthermore, this generally eases the sorting of the atoms.

2. Optimize the geometries using GFN2-xTB. GFN2-xTB is a semi-empirical tight-binding based method that employs a minimal valence basis set and is very efficient for calculating Geometries, vibrational Frequencies and Noncovalent interactions. For running the geometry optimization, call

   xtb start.xyz --opt > opt.out


   The optimized geometry is written to the file xtbopt.xyz.

3. Verify that the sequence of atoms is still the same in every pair of reactant and product structure.

4. Perform a reaction path search with the double-ended Growing String Method (GSM) at the GFN2-xTB level:

   1. Create a directory for each reaction.

   2. Have your optimized reactant and product structure sorted and available in xyz format (e.g. starting structure start.xyz, ending structure end.xyz).

   3. Create a directory scratch and store the starting and ending structures in the file initial0000.xyz:

      cat start.xyz end.xyz >> scratch/initial0000.xyz


   4. Place a file named ograd in the respective directory with the following content:

      #!/bin/bash
      ofile=orcain$1.in
      ofileout=orcain$1.out
      molfile=structure$1
      ncpu=$2
      basename="${ofile%.*}"
      ########## XTB/TM settings: #################
      cd scratch
      wc -l < $molfile > $ofile.xyz
      echo "Dummy for XTB/TM calculation" >> $ofile.xyz
      cat $molfile >> $ofile.xyz

      xtb $ofile.xyz -grad  > $ofile.xtbout

      tm2orca.py $basename
      rm xtbrestart
      cd ..


      The ograd file has to be made executable:

      chmod u+x ograd


   5. Place a file named inpfileq in the respective directory with the following content:

      # FSM/GSM/SSM inpfileq

      ------------- QCHEM Scratch Info ------------------------
      $QCSCRATCH/    # path for scratch dir. end with "/"
      GSM_go1q       # name of run
      ---------------------------------------------------------

      ------------ String Info --------------------------------
      SM_TYPE                 GSM    # SSM, FSM or GSM
      RESTART                 0      # read restart.xyz
      MAX_OPT_ITERS           160     # maximum iterations
      STEP_OPT_ITERS          30     # for FSM/SSM
      CONV_TOL                  0.0005 # perp grad
      ADD_NODE_TOL              0.1    # for GSM
      SCALING                               1.0    # for opt steps
      SSM_DQMAX               0.8    # add step size
      GROWTH_DIRECTION        0      # normal/react/prod: 0/1/2
      INT_THRESH              2.0    # intermediate detection
      MIN_SPACING             5.0    # node spacing SSM
      BOND_FRAGMENTS          1      # make IC's for fragments
      INITIAL_OPT             0      # opt steps first node
      FINAL_OPT               150    # opt steps last SSM node
      PRODUCT_LIMIT           100.0  # kcal/mol
      TS_FINAL_TYPE           0      # any/delta bond: 0/1
      NNODES                                15      # including endpoints
      ---------------------------------------------------------


      For the Claisen rearrangement, you can change the TS_FINAL_TYPE option from 0 to 1 to force GSM to break a bond upon the transition state search. The number of nodes (keyword NNODES) can be increased for a more refined search, which (of course) leads to longer computing time. In most cases, 15 nodes should be sufficient to find a good guess for the transition state.

   6. Start the transition state search by typing:

      gsm.orca


   7. After the calculation, you can find the reaction path in the file stringfile.xyz0000, and the transition state in scratch/tsq0000.xyz.

5. Prepare relative energy diagrams for both reactions (relative energy vs. reaction coordinate), depict the molecular structures of both transition states and highlight the most important bond distances.

6. Calculate the activation energy for each reaction.

7. Perform single-point calculations on the starting structure and transtion state structure with PW6B95-D3/def2-TZVP using TURBOMOLE. Compare the DFT activation energy with the GFN2-xTB energy and discuss the differences.

8. How would you proceed further to gain more reliable numbers?

9. How feasible is this approach? Where do you see its limits in applicability and usefulness?

Noncovalent Interactions

Noble Gas ⋅ ⋅ ⋅ Methane

Exercise 7.1

Calculate potential energy curves of the “weak” interactions between the noble gases Ar or Kr and methane.

Geometry of the CH₄ ⋅ ⋅ ⋅ Ar complex.

Approach

1. Calculate the potential energy curve at the BLYP-D3/def2-QZVP level for Ar ⋅ ⋅ ⋅ HCH₃ by performing a geometry optimization with a fixed Ar and H atom. Do this for \(R_\text{(Ar-H)}\) = 4.5 - 15.0 bohr with a stepsize of 0.25 bohr.

   Use the run-scan.sh script from exercise 5.1 and adopt it to this task. Substitute the template molecular geometry by the following one:

   $coord
      0.00000000000000      0.00000000000000      DIST                  ar f
      0.00000000000000      0.00000000000000      0.00000000000000      h f
      0.00000000000000      0.00000000000000     -2.06945348098289      c
      0.97576020317533      1.69006623336522     -2.75977586481614      h
      0.97576020317533     -1.69006623336522     -2.75977586481614      h
     -1.95152040635065      0.00000000000000     -2.75977586481614      h
   $end


   You also have to modify the directory names and the distances. Prepare a control file for the BLYP-D3/def2-QZVP calculations including the $disp3 -bj and $symmetry c1 keywords.

2. Repeat the calculations for BLYP/def2-QZVP and MP2/def2-QZVP. For BLYP, just omit the $disp3 block. For MP2, clear the $dft and $disp3 blocks and insert proper settings under $ricc2 and $denconv. In the latter case, don’t forget to change the jobex command in the script to:

     jobex -ri -level cc2 -c 50


   To get the final MP2 energy for each distance, also change the sdg command to:

     e=$(grep "Total Energy" job.last | gawk '{print $4}')


3. Repeat the calculations for Kr ⋅ ⋅ ⋅ HCH₃ (substitute ar by kr in the template) with BLYP-D3/def2-QZVP, BLYP/def2-QZVP and MP2/def2-QZVP.

4. Plot the curves (normalize to the dissociation limit) and discuss your findings.

Spectroscopy

IR-Spectrum of 1,4-Benzoquinone

Exercise 8.1

Calculate the IR-spectrum of 1,4-benzoquinone using DFT and HF, and compare the results to the experimental spectrum given below.

Approach

1. Create a coord file for 1,4-benzoquinone.

2. Optimize the geometry with TURBOMOLE on the HF-D3/def2-SVP level of theory.

3. Calculate the normal modes with aoforce.

4. Call tm2molden and check the normal modes with gmolden the same way as in exercise 4.1.

5. Assign each dipole-allowed normal mode to an experimental one and calculate the scaling factor \(f_\text{scal}=\nu_\text{exp}/\nu_\text{calc}\).

6. Repeat everything with TPSS-D3/def2-SVP and discuss your findings.

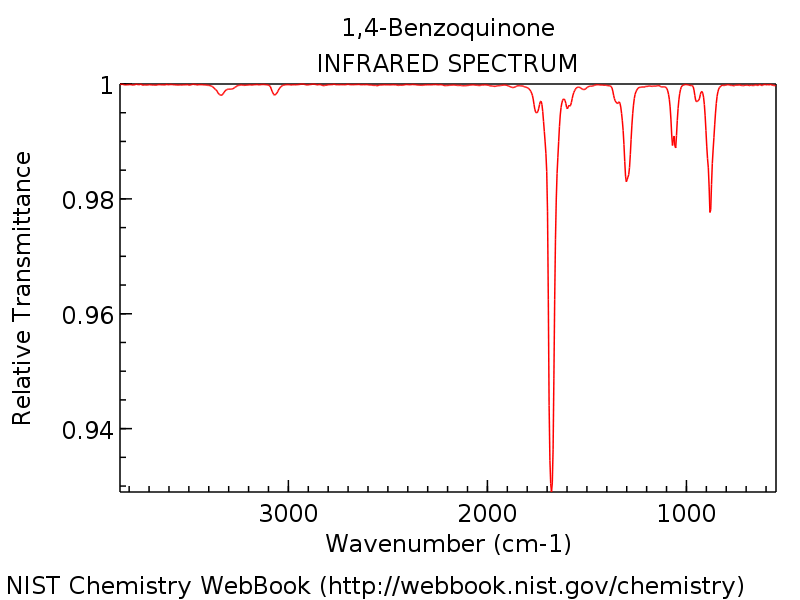

IR spectrum of 1,4-benzoquinone in KBr.

Hint

If you obtain imaginary frequencies, try to start the geometry optimization from a slightly distorted structure. Check if the imaginary frequencies vanish.

The Color of Indigo

Exercise 8.2

Calculate the color of indigo with three different methods: time-dependent Hartree-Fock (TD-HF) and time-dependent DFT (TD-DFT) with two different functionals (PBE and PBE0).

Approach

1. In this exercise, please use TURBOMOLE’s interactive input generator define to create the control file. To do so, create the geometry of an indigo molecule (figure below) and place the coord file in its own directory.



   Structure of indigo.

   To start the input generator, navigate to the directory containing the coord file, type the following command and answer all questions that appear.

   define


   Prepare an input on the TPSS-D3/def2-SVP level and optimize the geometry. In the define dialogue, you can skip the first two questions, then choose the input geometry file via:

   a coord


   In this menu, you will find a header telling you the number of atoms of your molecule and its symmetry point group (Schoenflies symbol). If this is not yet correct (the molecule does not have C₁ symmetry), type desy 1d-3 or some larger value to loosen the symmetry determination threshold until the correct point group is recognized. If the symmetry is still not recognized correctly, you can set the point group manually with the sy command. In this case make sure TURBOMOLE does not add atoms to your coord file.

   Leave the molecular geometry menu and then do not choose internal coordinates. In the atomic attribute definition menu, you can choose the same basis for all atoms by typing e.g.:

   b all def2-SVP


   Afterwards, choose an extended Hückel guess for the MOs with default parameters (don’t worry about a small HOMO/LUMO gap). In the last general menu, go to the dft submenu and type e.g.:

   on
   func tpss


   Don’t forget to also choose the bj option in the dsp submenu for the D3 disperion correction (activating the RI approximation in the ri submenu is also recommended). When you are finished, you will find a control file in your directory containing all keywords you already know and more. If everything is correct, you are now ready to run the geometry optimization.

   Hint

   Try to navigate through the define dialogue a few times and explore it by yourself to get familiar with it. If you still can’t figure out a certain aspect, feel free to ask your lab assistant.

2. Prepare a HF-D3/def2-SVP single-point calculation in the same way by using define, but do not turn on the dft option. Do not use the RI approximation here and run:

   dscf > dscf.out


   In order to do the subsequent TD-HF (or a TD-DFT) calculation, add the following two blocks so the control file:

   $scfinstab rpas
   $soes
     bu 1


   Then, run:

   escf > escf.out


3. For the TD-DFT calculations repeat the above procedure with PBE-D3/def2-SVP and PBE0-D3/def2-SVP (now with RI approximation). Use proper settings during the define dialogue as well as in control and run:

   ridft > ridft.out
   escf > escf.out


4. Discuss the excitation energies for all three methods; which method would predict (at least approximately) the correct color for indigo? How do you explain the errors?

NMR Parameters

The computation of NMR parameters can be done with the ORCA program package. A simple input for the calculation of the NMR chemical shielding of CH₃NH₂ with the PBE functional and a pcSseg-2 basis set is presented below. The pcSseg-n basis sets are special segmented contracted basis sets otimized for the calculation of NMR shieldings. (For more information see: Jensen, F., J. Chem. Theory Comput. 2015, 11, 132 - 138.)

!PBE RI pcSseg-2 def2/J NMR

*xyzfile 0 1 input.xyz

At the end of the ORCA output, a summary of the calculated NMR absolute chemical shieldings can be found.

Exemplary output for CH₃NH₂:

--------------------------
CHEMICAL SHIELDING SUMMARY (ppm)
--------------------------


  Nucleus  Element    Isotropic     Anisotropy
  -------  -------  ------------   ------------
      0       C          152.992         46.821
      1       H           29.025          8.165
      2       H           28.567         10.286
      3       N          242.339         43.497
      4       H           29.033          8.176
      5       H           31.095         13.580
      6       H           31.120         13.593

Exercise 8.3

Calculate the ¹³C-NMR chemical shifts δ for a number of organic compounds and compare the results to experimental data. In addition, investigate the correlation of the π-electron density with δ.

Lewis structures of seven organic compounds A – G with their experimentally obtained chemical shift as well as four aromatic compounds Ar-1 - Ar-4.

Approach

1. Optimize the geometries of the compounds A – G and the reference molecule Si(CH₃)₄ (TMS) on the PBEh-3c level of theory (how to use PBEh-3c is explained in the ORCA manual).

2. Calculate the ¹³C-NMR chemical shieldings and shifts δ for compounds A – G with TMS as reference at PBE/pcSseg-2 level of theory (use this level in all the following calculations if not stated otherwise). Given the isotropic NMR shielding constants \(\sigma\) of the compound (\(\text{c}\)) and the reference (\(\text{ref.}\)), the chemical shift \(\delta _\text{c,ref.}\) is defined as

   \[\delta _\text{c,ref.} = \sigma _\text{ref.} - \sigma _c .\]

   Hint

   Computational time can be saved by calculating the shieldings only for carbon atoms instead of all atoms. How to do so is described in the ORCA manual.

3. Compare your results with the experimental values and calculate the mean deviation (MD) and the mean absolute deviation (MAD).

   \[\text{MD} = \frac{1}{N} \sum_{i=1}^N (\delta _\text{calc.} - \delta _\text{exp.}) \hspace{1.5cm} \text{MAD} = \frac{1}{N} \sum_{i=1}^N (|\delta _\text{calc.} - \delta _\text{exp.}|)\]

4. Repeat the calculations for the four aromatic compounds Ar-1 – Ar-4 and plot the calculated chemical shift against the formal π-electron density (\(\rho_\pi = n_{el^\pi}/n_{at^\pi}\)). Discuss your results.

5. The experimental ¹⁷O- and ¹³C-NMR chemical shifts of the carbonyl function in acetone are shifted by 75.5 and -18.9 ppm, respectively, if an acetone molecule is transferred from the gas phase to aqueous solution. Try to reproduce these values by considering solvation effects by the implicit solvent model CPCM. You can switch on the implicit solvent by adding the CPCM(<solvent>) keyword (example: CPCM(toluene)) to your ORCA input. For carbon, the reference is TMS, for oxygen it is water.

6. Try to estimate which effect is larger – the inclusion of an implicit solvation in the NMR calculation or the inclusion of the implicit solvent in the geometry optimization.

   Hint

   There are two options (gas/solution) for each calculation, the geometry optimization and the shielding calculation. Compare all possibilities.

7. Calculate the ¹H-NMR chemical shifts for H and I in the gas-phase at the PBE/pcSseg-2//PBEh-3c level of theory (again use TMS as the reference). Discuss your observations regarding the chemical shift of the methine proton in both compounds. Give a short explanation of your findings.



   Lewis structures of in- (H) and out- (I) [3^4,10][7]Metacyclophane.

   Hint

   The NMR chemical shielding calculations for H and I may be time consuming, consider to run them over night.
